For Roofs
KEELINE for Roofs combines the stainless steel life line system with hot dip galvanised roof anchor assemblies.
The design of the roof anchors in conjunction with the efficient in-line shock absorbers mean that the system can be top fixed to many modern roof constructions including trapezoidal metal profile roofs, both built up and composite, standing seam roofs and membrane roofs.
KEELINE for Roofs has been designed and certified to EN795 Class C as a complete system.
To simplify specification only two base plate types are required dependant on the roof type.
To minimise damage to the roof surface and to provide a safe, slip resistant level walking surface KEELINE for Roofs can be used in conjunction with KEE WALK.
Quick to Install
Metal roof base plates have multiple fixing centres to suit a wide range of roof profiles.
To fix to metal profile roofs, high strength rivets and sealing strip allows the anchors to be fitted with minimal penetration whilst maintaining the roofs integrity.
Standing seam roofs require no penetration whatsoever utilising the patented S5 clamp.
Membrane roof base plates allow KEELINE for Roofs anchors to be top fixed to suitable metal or concrete deck roofs.
The fixing holes are recessed so the fastener head sits flush with the base plate.
It is quickly waterproofed using a ‘patch’ of the original roof membrane, the upright post remains uncovered to aid easy inspection and to minimise damage to the membrane in the event of a fall and so stop water ingress.
Back to the top

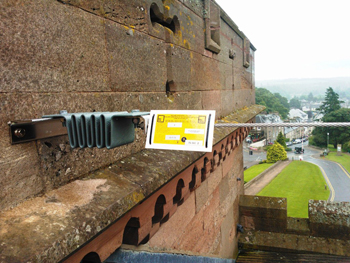

For Structures
KEELINE for Structures provides the Horizontal Lifeline components to allow
mounting directly to concrete, steel, brick or stonework either in the horizontal or overhead application using suitable M12 A4-80 fixings.
- 8mm dia Horizontal life line system for fixing directly to suitable Steel, Concrete, Brick or Stone structures
- Durable Gr.316 electro-polished stainless steel components
- Up to 3 users
- Patented in-line shock absorber limits end loads to less than 10 kN
- Corner and intermediates bracket options allows system to follow structures shape
- Up to 15m spans between supports
- Removable Traveller easily passes corners and intermediate brackets for continuous protection and enables users to detach or re-attach at any point of the system
- Conforms with EN795 Class C
- CE Marked.
Back to the top

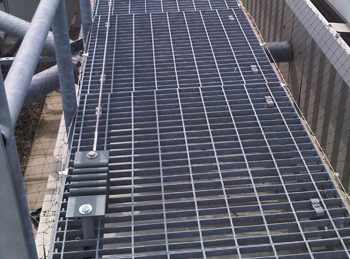

For Postanka
The Kee Safety’s POSTANKA range are fabricated, hot dipped galvanised anchors, designed using a standard calculation program to the requirements of EN 795 Class A2.
Used where it is preferable to mount directly to a buildings structure, e.g. on traditional sloping roofs or onto concrete roof decks, for example on green roofs.
POSTANKA anchors are available in standard sizes but are more typically designed to suit customer’s specific application.
POSTANKA anchors are available in two styles.
Type 3
Designed to clamp around either suitable wooden or steel beams and
features a solid adjustable height pedestal.
Type 6
A solid central pedestal welded to a 15mm thick base plate. Available with multiple fixing options.
As standard POSTANKA anchors are tapped to accept the KEELINE system or alternatively for use with Kee Safety’s RINGANKA eyebolt range to produce single point anchor points, for fall protection or rope access.
Weather caps are also available.
As the POSTANKA range can be designed to suit a particular application, anchors can be produced for mounting other products for example KEE WALK or solar panels.
Back to the top

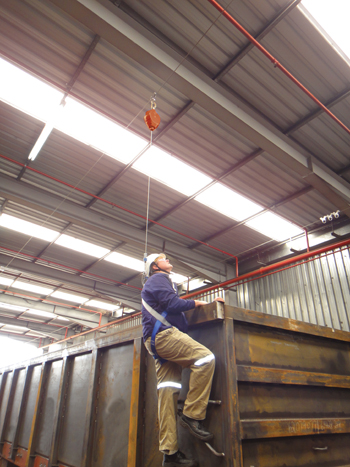

Overhead
KEELINE Overhead provides personal protection, either fall arrest or restraint, for up to two users. Used where it is beneficial to have the life line system mounted directly above the user including vehicle loading, machine maintenance and access, building maintenance and cleaning and overhead crane access.
Gr. 316 Stainless steel 8mm (5/16”) dia. wire and electro-polished components are used to ensure a low maintenance, durable solution.
The permanently attached two wheeled traveller smoothly passes the intermediate brackets even when the user is attached to the fully paid out length of an Inertia Reel Fall Arrest Block.
The system can be configured to allow single or multiple spans of up to 24m and the efficient patented KEELINE absorber minimises the end loads back to the supporting structure to below 10kN.
KEELINE Overhead has been tested in conjunction with IKAR Fall Arrest Blocks rated for users up to 136kg, that lock off in the event of a fall to minimise forces to an acceptable level.
Features of KEELINE Overhead
- Suitable for single or multiple span systems
- Spans of up to 24m in between supports
- Higher pre-tension than standard KEELINE systems reduces line sag and cable deflection
- Independently tested by Satra in the UK to the requirements of EN795 Class C
- Meets the requirements of international standards
Benefits of KEELINE Overhead
- Permanently attached, Gr.316 stainless steel, smooth running two wheeled traveller easily passes intermediate brackets
- In-line shock absorber limits end loads to structure
- End and intermediate brackets are installed directly to suitable structures, including steel or concrete
- Durable electro-polished Gr.316 stainless steel brackets and traveller
